| Ask Lasest Price | |
| Brand Name : | Stron |
| Model Number : | STE18-D |
| Certification : | STS |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 10000/Month |
| Delivery Time : | 15Days |
DIN-Rail Split Keypad Single Phase Prepaid Electricity Meter With CIU
Electrical Parameters
| Nominal Voltage | 230V |
| Working Voltage Range | 70%~120%Un |
| Nominal Frequency | 50-60Hz |
| Basic Current (Ib) | 5A |
| Maximum Current (Imax) | 60A |
| Starting Current (Ist) | 20mA |
| Active Energy Constant | 1000imp/kWh |
| Measurement Accuracy | Class 1.0 |
| Power Consumption in Voltage Circuit | <2W <8VA |
| Power Consumption in Current Circuit | <1VA |
| Operation Temperature Range | -25℃-70℃ |
| Storage Temperature Range | -40℃-85℃ |
Electric Magnetic Compatibility
| AC Insulation Strength | 4kV at 50Hz during 1min | |
| Impulse voltage 1.2/50 us mains connections | 8kV | |
Electrostatic Discharges | Contact discharge | 8kV |
| Air discharge | 16kV | |
| Electromagnetic RF Field | 27MHz-500MHz | 10V/m |
| 100KHz-1GHz | 30V/m | |
| Fast transient burst test | 4kV | |
| Protection | Class II | |
Stronpay PAYG Management System

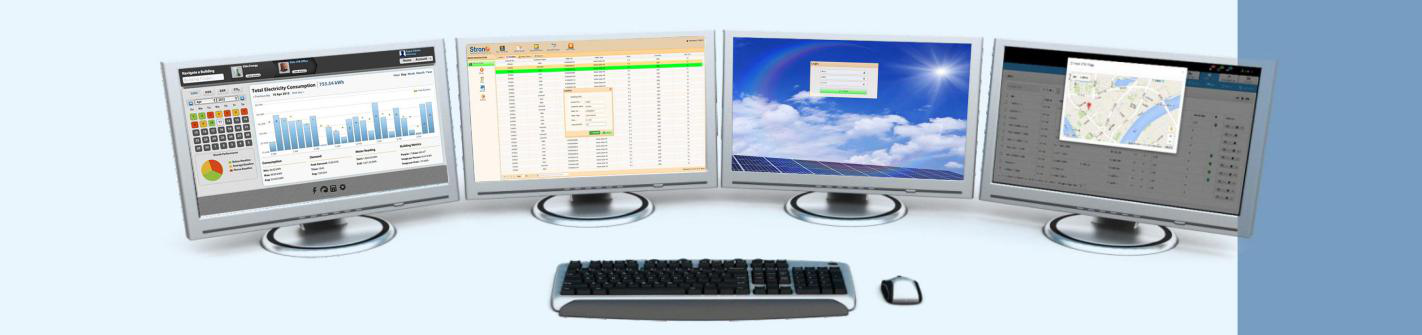

Stronpay PAYG Software is a vending management system, it has three different versions can be choose: Web based version, Stand alone version and Hand held mobile vending unit. It has administrative operations such as customer and meter registration, vending, report.
How our PAYG work?
|
|
