Prepaid keypad STS Standard IP54 Waterproof 3 Phase Intelligent Energy Meter With Vending Software
Application:Counting the electricity consumption of users over a period of time.

Compliance with Standard
✽ ISO 9001 ; ISO 14001
✽ STS Certificated

STE38-A is an STS Standard compliant, keypad type, automatically valve controlled prepaid three phase electricity meter. The integrated keypad of three phase electricity meter is offered to enter recharge TOKEN and check information by short codes. It can be top up with Stronpay vending software directly and communicate with AMI system via LORA-RF or PLC module.
Stronpay vending software could be integrated to local Mobile Money Payment Platform via API, like M-PESA, Alipay, MTN, Airtel, etc. AMI system can read, control and recharge meters remotely via DCU and communication mudules.

Electrical Parameters

Electric Magnetic Compatibility

Main Features
① Ingress protection IP54 waterproof
② Up to 8 years battery life
③ Connection/disconnection
④ STS Standard
⑤ Real-time clock
⑥ Utilities can set TOU price into meter on request
⑦ Anti-Tamper Magnetic field protection
⑧ LORA-RF communication (optional)
⑨ Pay by mobile payment including M-PESA, Alipay, MTN, Airtel, etc.

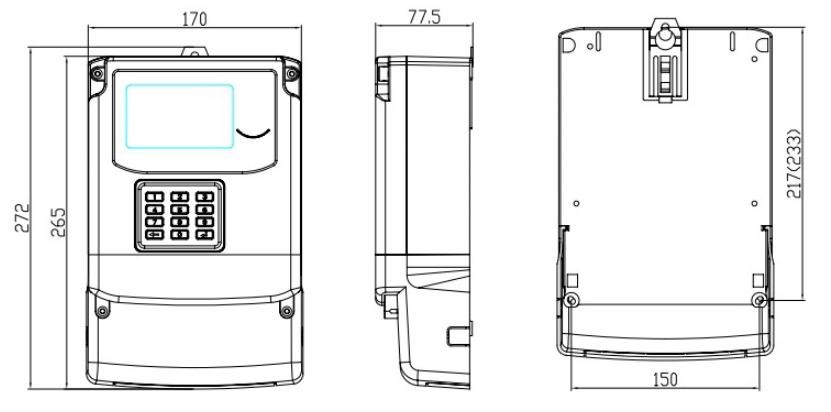

Meter Dimension


Function

✽ Prepayment: STS Standard, recharge by inputting 20digits TOKEN.

✽ Low credit alarm: Alarm value can be set by inputting corresponding TOKEN.

✽ Prepaid and post-paid switch: Meter can be switch to prepaid mode or post-paid mode.

✽ Load control function: Meter can be programmed for load control threshold, If the current power is more than threshold. The meter will cut off user load.

✽ Event recording: Meter can record the tamper event, open cover event, purchase event and TOKENS.

✽ Self-testing: Meter has a self-test function, it can test LCD and relay etc. and report the results directly.

✽ Anti-tamper: Meter will automatically close the valve after detection of magnetic field and open cover event.

✽ TOU Tariff: TOU Tariff can be set by inputting corresponding TOKEN.

✽ Overdraft Collection: Electricity Overdraft can be collected day by day or month by month

✽ Communication: The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request.

✽ Information Inquiry: Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code.

1. By Stronpay vending Software

➯ Via local sales point or handheld mobile vending unit

Vending Process

1. Login the web-based vending website by inputting the user name, company name and password.

2. Register the meter number and customer information at the library center.

3. Set the price for different customers

4. Open an account to combine the meter,customer and price information

5. Get the Token at the Top up center.

6. Input the Token with keypad.

7. Recharging completely.

2. By the third party platform or local mobile payment with API

➪ Via mobile phone

API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.

Stronpay vending software can easily integrated with local mobile payment via API, which is the agreement connecting the third party APP and our Stronpay vending software. People can recharge the gas with their mobile phone, the vending software will send a Token to the third party APP via API, then users get the recharge Token via GSM.

The advantages to recharge with mobile payment:

1. Users can top up electricity by mobile money without leaving the house.

2. Users could check information by their telephone.

3. It helps utilities for Revenue protection and consumer

Founded in 2007, Hunan Stron Smart Co., Ltd is the leading supplier of smart meters in China. There are 500 employees in our company including 100 technical engineers, and 100 people with professional title. We are devoting ourselves to be the intelligent product service provider.

In China, we have more than 10 million meters running in State Grid of China, which is the biggest utility in the world. All these meters are performing very well. Our production capacity is 8million smart meters per year. And a workshop only working for overseas’ order to guarantee the delivery time and quality control.

Stron owns a strong technical team comprised of industry professional engineers and eminent experts and has applied for over 100 patents and intellectual property rights, and a number of its products and technologies have won the national, provincial and municipal awards.
