    Stron STS Standard Prepaid Split Three Phase Electricity Meter with CIU

    Ask Lasest Price
    Brand Name : Stron
    Model Number : STE38-S
    Certification : STS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 set per month
    Delivery Time : 14 work days
    • Product Details
    • Company Profile

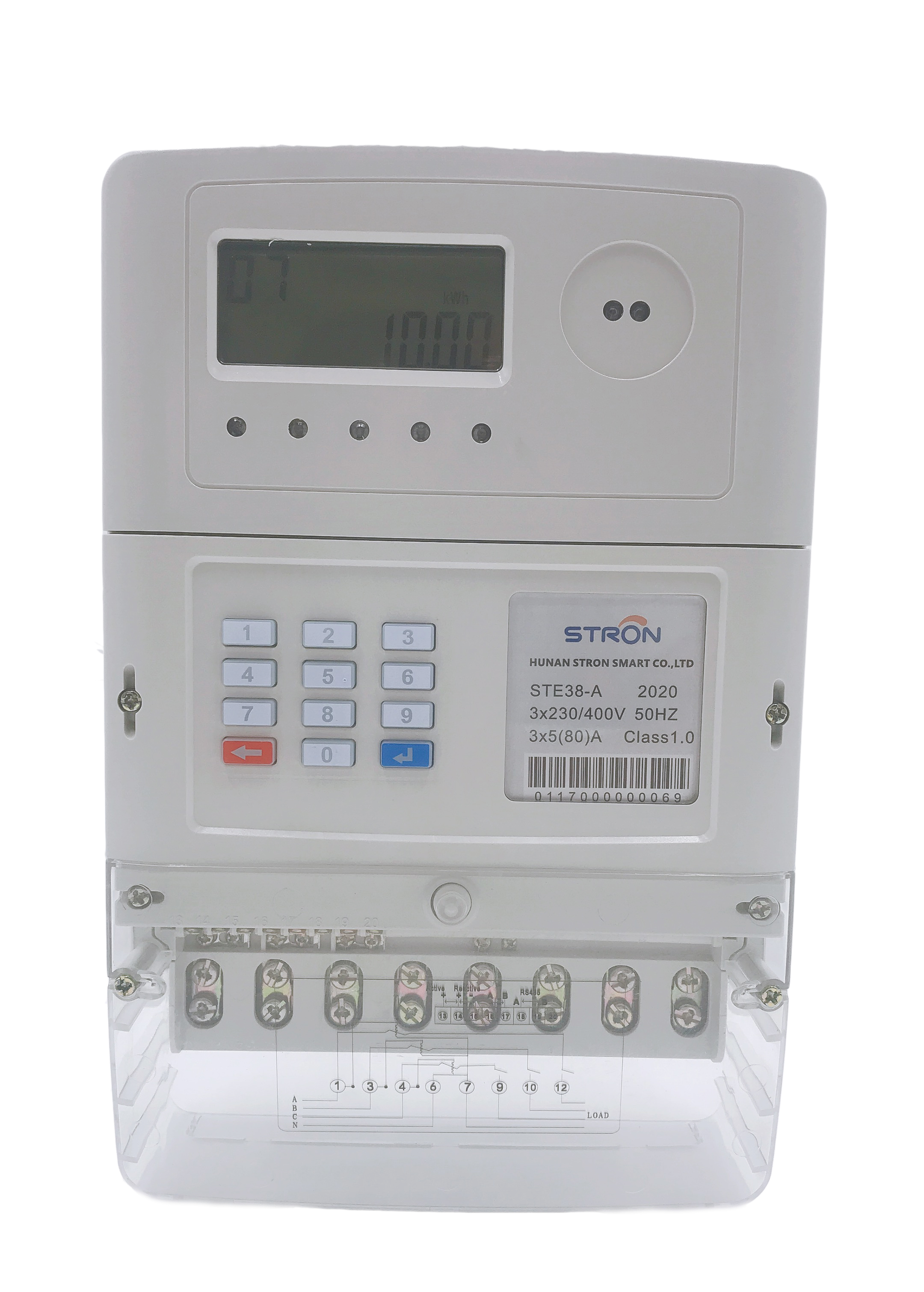

    Stron STS Standard Prepaid Split Three Phase Electricity Meter with CIU

    Ste38-s has professional and high-performance three-phase metering function, which is composed of three-phase prepayment watt hour meter and sub key CIU (customer interface unit). It provides keys for remote recharge and information query, which is its core competitiveness, advanced and easy to use. Lora radio frequency is used for communication between the instrument and CIU, which is effective and low cost. The communication distance is about 1km.


    The keyboard function of CIU is the same as that of the meter itself. The user can input a 20 bit token to recharge or query information. Various information can be switched by inputting different graphic combinations. Users can easily retrieve metering data such as daily usage, monthly usage, current current and voltage, balance and last five input tokens.


    The meter can also be integrated with African local mobile money for prepayment, like M-pesa, MTN, Airtel through API(Application Programming Interface), which is the agreement connecting the third party APP and our Stronpay vending software. In this way, users can top up electricity credit by mobile money without leaving the house and could check information by their telephone at hand with internet accessibility.


    Electrical Parameters
    Nominal Voltage3×230V
    Working Voltage Range70%~120%Un
    Nominal Frequency50-60Hz
    Basic Current (Ib)10A
    Maximum Current (Imax)100A
    Starting Current (Ist)30mA
    Active Energy Constant400imp/kWh
    Active Energy AccuracyClass 1.0
    Reactive Energy AccuracyClass 2.0
    Power Consumption in Voltage Circuit<2W <8VA
    Power Consumption in Current Circuit<1VA
    Operation Temperature Range-25℃-70℃
    Storage Temperature Range-40℃-85℃
    Electro Magnetic Compatibility
    AC Insulation Strength4kV at 50Hz during 1min
    Impulse voltage 1.2/50 us mains connections8kV

    Electrostatic Discharges


    Contact discharge8kV
    Air discharge16kV
    Electromagnetic RF Field27MHz-500MHz10V/m
    100KHz-1GHz30V/m
    Fast transient burst test4kV
    Mechanical requirements
    Meter shell Water proof protection RateIP54
    ProtectionClass II

    Split Type Three Phase Prepaid Energy Meters IEC standard STS compliance


    Basic Functionality


    Function

    Prepayment: STS Standard, recharge by input 20digits TOKEN

    Low credit alarm: Alarm value can be set by inputting corresponding TOKEN

    Prepaid and post-paid switch: Meter can be switch to prepaid mode or post-paid mode

    Load control function: Meter can be programmed for load control threshold, If the current power is more than threshold. The meter will cut off user load.

    Event recording: Meter can record the tamper event, open cover event, purchase event and TOKENS.

    Self-testing: Meter has a self-test function, it can test the LCD screen and relay etc. and report the results directly

    Anti-tamper: Meter will automatically close the valve after detection of magnetic field and open cover event

    TOU Tariff: TOU Tariff can be set by inputting corresponding TOKEN

    Overdraft Collection: Electricity Overdraft can be collected day by day or month by month

    Communication: The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request

    Information Inquiry: Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code.
