Three Phase STS Standard Split Keypad Type Smart Remotely Controlled Electric Meter Pay By Mobile Phone

Stron Smart Split Keypad Prepaid Three Phase Electricity Meter is composed of a prepaid keypad three phase electricity meter and a separate customer interface unit(CIU) with RF, PLC wireless communication module or two wires. The CIU is installed inside customer’s house, when the meter is kept away from customer’s reach in locked boxes or houses.

Meter has a self-test function, it can test LCD and relay etc, and report the results directly. It can be programmed for load control threshold, If the current power is more than threshold, the meter will cut off user load. Usually customer purchases energy by the vending network to get a serial number (TOKEN), and then use the keypad of meter to enter the TOKEN.

Main Features
① Up to 8 years battery life
② Connection/disconnection
③ STS Standard
④ Real-time clock
⑤ Utilities can set TOU price into meter on request
⑥ Anti-Tamper Magnetic field protection
⑦ LORA-RF communication (optional)
⑧ Pay by mobile payment including M-PESA, Alipay, MTN, Airtel, etc.


Electrical Parameters

Electric Magnetic Compatibility

Meter Dimension

Basic Functionality:

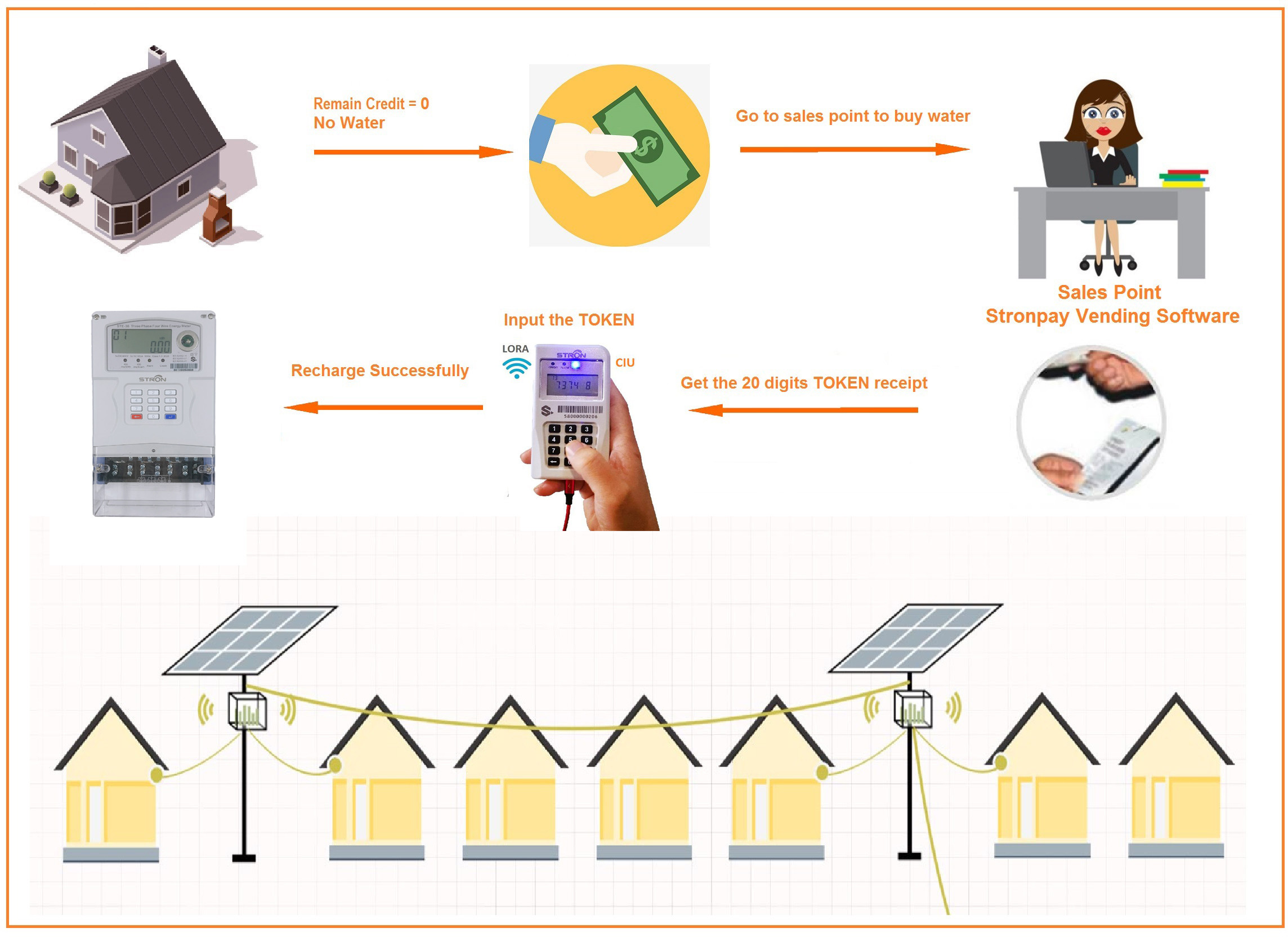

1. By Stronpay vending Software

➯ Via local sales point or handheld mobile vending unit

First, Login the web-based vending website by inputting the user name, company name and password.

Second, Register the meter number and customer information at the library center.

Third, Set the price for different customers.

Fourth, Open an account to combine the meter,customer and price information.

Fifth, Get the Token at the Top up center.

Sixth, Input the Token with keypad.

Seventh, Recharging completely.

2. By the third party platform or local mobile payment with API

➪ Via mobile phone

API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.

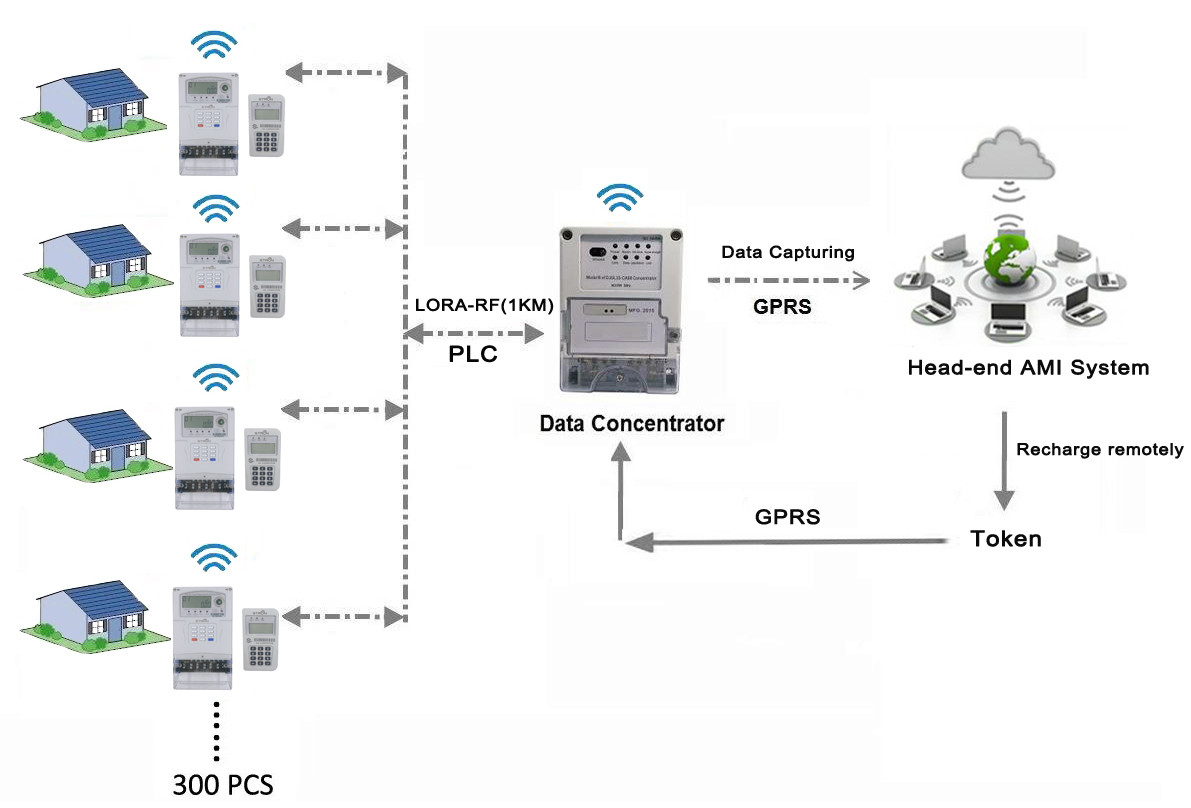

3. By the AMI System

➪ Recharge remotely via DCU and LORA-RF or PLC module

The LORA-RF/PLC meter can be recharged by inputting the Token with the CIU. It also can communicate with the AMI system to recharge remotely.

① Operator generate the recharge Token in AMI system

② The 20digits Token will be send to data concentrator via GPRS module.

③ The DCU get the Token and transfer to prepaid smart meter via LORA-RF module.

④ Inputting the Token by keypad or CIU. After the credit accepted by meter, the remotely recharge succeed.

Founded in 2007, Hunan Stron Smart Co., Ltd is the leading supplier of smart meters in China. There are 500 employees in our company including 100 technical engineers, and 100 people with professional title. We are devoting ourselves to be the intelligent product service provider.

In China, we have more than 10 million meters running in State Grid of China, which is the biggest utility in the world. All these meters are performing very well. Our production capacity is 8million smart meters per year. And a workshop only working for overseas’ order to guarantee the delivery time and quality control.

Stron owns a strong technical team comprised of industry professional engineers and eminent experts and has applied for over 100 patents and intellectual property rights, and a number of its products and technologies have won the national, provincial and municipal awards.
