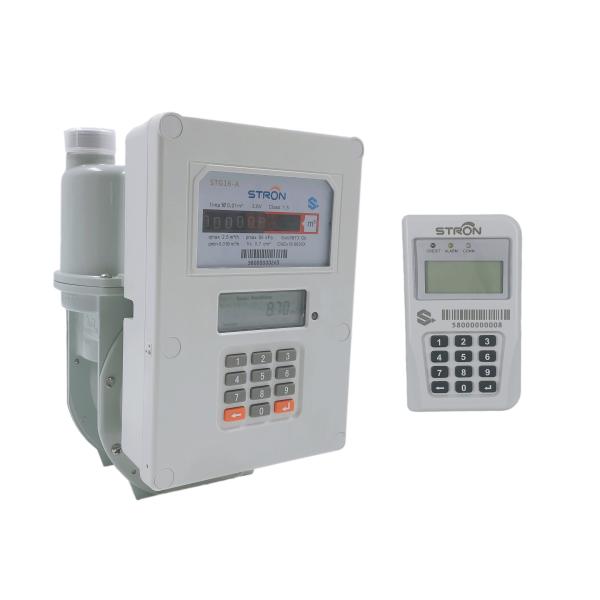

Split Keypad STS Standard Prepay Intelligent Keypad Type House Gas Meter With CIU

The integrated keypad of gas meter and customer interface unit(CIU) are offered to enter recharge TOKEN and check information by short codes. Stronpay vending software could be integrated to local Mobile Money Payment Platform like M-PESA, Alipay, MTN, Airtel, etc. AMI system can read, control and recharge the smart gas meter remotely via DCU and LORA-RF module.

Compliance with Standard

✽ ISO 9001 ; ISO 14001

✽ STS Certificated

Application:

Measuring the volume of gas through gas pipes.

Features

a. Recharge by inputting 20-digit token code via keypad.

b. Low power usage and low failure rate.

c. Over 10 years’ data storage in absence of power.

d. Up to 10 years' battery life.

e. Reading through LORA-RF.(on request).

f. Low credit warning and low battery alarm.

g. Optional valve leakage warning.

Metrological Parameters of different size

Size	G1.6	G2.5	G4
Nominal Flow Rate	1.6 m3/h	2.5 m3/h	4 m3/h
Maximum Flow Rate	2.5 m3/h	4 m3/h	6 m3/h
Minimum Flow Rate	0.016 m3/h	0.025 m3/h	0.04 m3/h
Cyclic Volume	0.7dm3	1.2 dm3	2 dm3
Maximum working pressure	0.7 Bar	0.7 Bar	0.7 Bar
Pressure loss	<200 Pa	<200 Pa	<200 Pa
Maximum reading	99999	99999	99999
Working temperature	-20-50℃	-20-50℃	-20-50℃
Storage Temperature	-30-60℃	-30-60℃	-30-60℃
Error: Qmin≦Q≦0.1Qmax 0.1Qmax≦Q≦Qmax	±3	±3	±3
	±1.5	±1.5	±1.5

Meter Dimension

Function	Details
Prepayment	STS Standard, recharge by input 20digits TOKEN
Low credit alarm	Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch	Meter can be switch to prepaid mode or post-paid mode
Anti-tamper	Meter will automatically close the valve after detection of magnetic field and open cover event
Step Tariff	Step Tariff can be set by inputting corresponding TOKEN
Overdraft Collection	Non- Revenue gas (Overdraft) can be collected day by day or month by month
Communication	The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry	Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code
Liquid Crystal Display

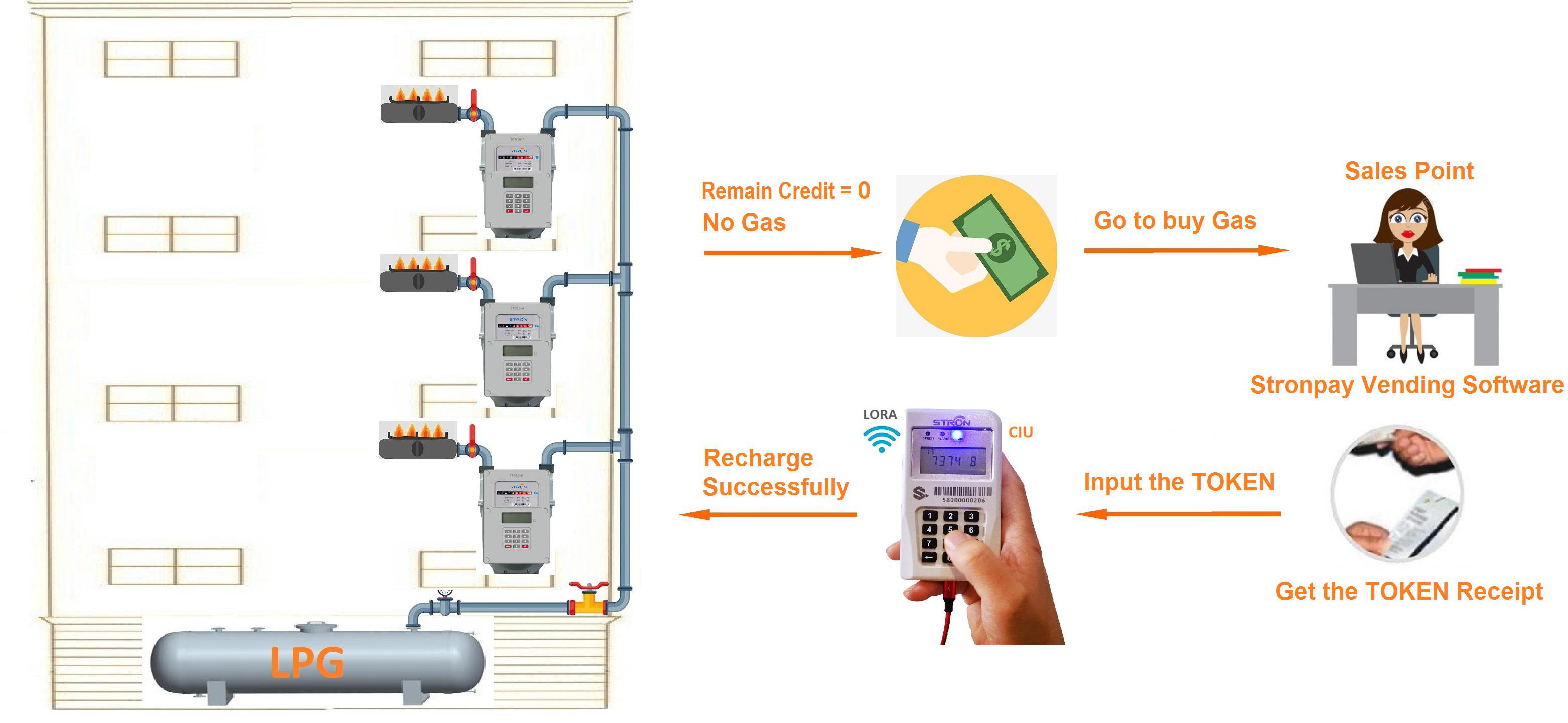

Three ways to recharge

1. by Stronpay vending Software

➯ Via local sales point or handheld mobile vending unit

2. By the third party platform or local mobile payment with API

➪ Via mobile phone

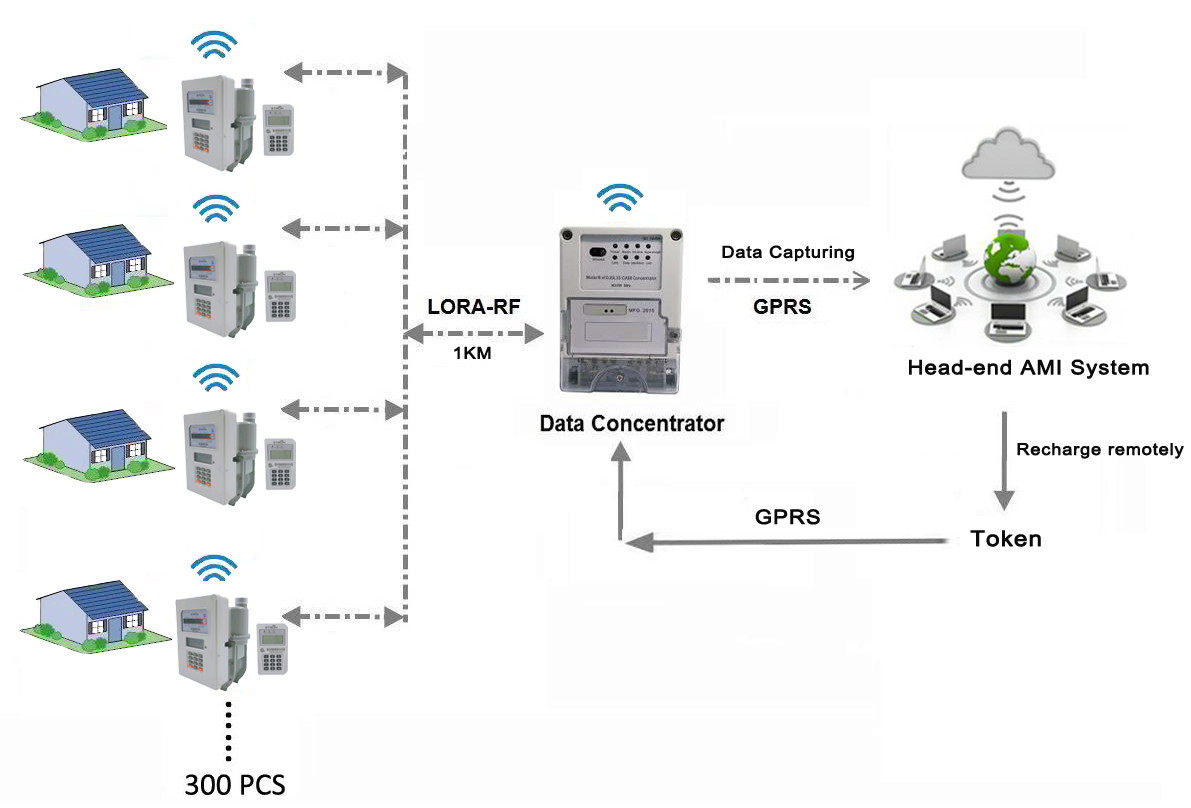

3. By the AMI System

➪ Recharge remotely via DCU and LORA-RF or NB-IoT module
