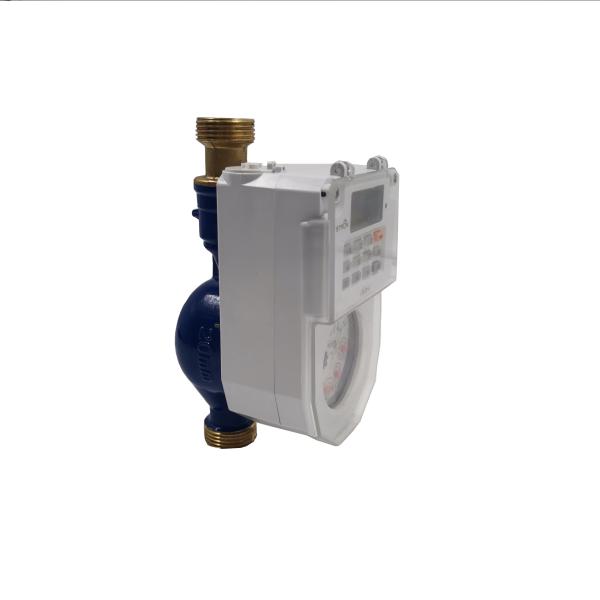

STS Dry-type Anti-tamper Integrated Keypad Multi-jet Prepaid Water Meter

Product introduction

STW36-A is STS standard dry type keypad multi-jet smart prepaid water meter.It can be both applied to residential and commercial field.This prepaid function is that firstly pay,then get water while traditionally users firstly get water and then pay.Therefore,charge problem will be well solved.It has functions of real time display,anti-tamper magnetic field protection,step price setting,automatic non-return valve,low power consumption of battery,mobile payments with API integrated is available.It has certificated with ISO 9001,ISO 14001,ISO 4046.

Stronpay water vending software could be integrated to local Mobile Money Payment Platform like M-PESA,Alipay,MTN,Airtel, etc.So users can top up PAYGO water by mobile money without leaving the house. Pay as you go function and excellent anti-tamper feature like Magnetic field protection to help utilities for Revenue water protection and consumer management.

Application

1.Prepaid meters are cost-effective solutions to sustainable water management in that they have a low cost of acquisition and, by curbing water usage; capital recovery is possible within months. The systems are also able to distribute water equally, based on free water quotas, water balancing and fluctuating demand.

2.Aside from their ability to alert municipalities to leaks, prepaid water meters also drastically reduce government’s admin costs. This is because municipalities don’t need to chase bad debts or budget for legal fees on unpaid accounts. Public sector cash flow is immediately improved.

3.Collecting data from prepaid meters is also more efficient than the manual collection required for post-paid meters. A radio link receiver can be fixed, vehicle-mounted, or carried by municipality personnel

4.Prepaid metering reduces admin to a minimum, while removing the risk and frustration of late or non-payment of water bills. This is why housing estates are swiftly moving to prepaid water, as they did with prepaid electricity. Gone are the days of splitting the entire estate’s water bill by the number of units.

5.Prepayment means that users pay for their consumption only.

Main functions and characteristics

●Multi-jet design:running normally even in muddy water.

●Non-return Valve: prevent water back-flow.

●Prepayment: user must pay first and then get water available

●Anti-tamper: after detection of magneticfield and open cover event,valve will automatically closed.

●TOU Tariff: TOU tariff can be set as request.

●Simple structure: with simple structure and easy to use.

●Engineering convenience: it has simple structure and small quantities to construct.And the construction cost is low.

● Meter with anti-tamper capability:when monitoring the magnetic attack,the valve will automatically be closed.

●Low power design: the battery inside is easy to replace and have a long life with 6-10 years.

●Automatic initialization setting: the automatic initialization Settings of all information can be completed by system equipment, containing remote concentrator(optional), the automatic recording of all initialization information of apparatus.

●Reading in scene: digital LCD screen is installed on smart terminal, the readings of meter can be directly copied and set at the scene.

●Statistical analysis: statistics, analysis, data processing of water usage of residents can be managed by computer.And the computer provides a variety of corresponding reports and graphics of analysis in order to provide reference for the infrastructure of community, at the same time toll receipts can be printed directly on the computer. It also provides open interface.

●Pay by mobile payment M-PESA, Alipay, MTN, Airtel, etc

Technical Parameters of different size

Features

✽ Maximum working pressure: 16 Bar

✽ Maximum pressure loss: 0.6 Bar

✽ Maximum reading: 99999

✽ Working temperature: <50℃

✽ Error: Q1≤Q≤Q2 5%;

Q2≤Q＜Q4 2%

Meter dimension

Product prospect

The keypad prepaid water meter has developed till now,most users have a wide range of knowledge.Automatic meter reading system is already very mature remote communication system that can be used such as GPRS, broadband, ADSL, mobile phone short message and other way to connect the city network, and has been widely adopted by way of bank collection fees management which makes the whole meter reading and billing link to realize full automation.Water supply department can provide better service, meanwhile also can get more accurate water consumption, especially for commercial or industrial water meter.
