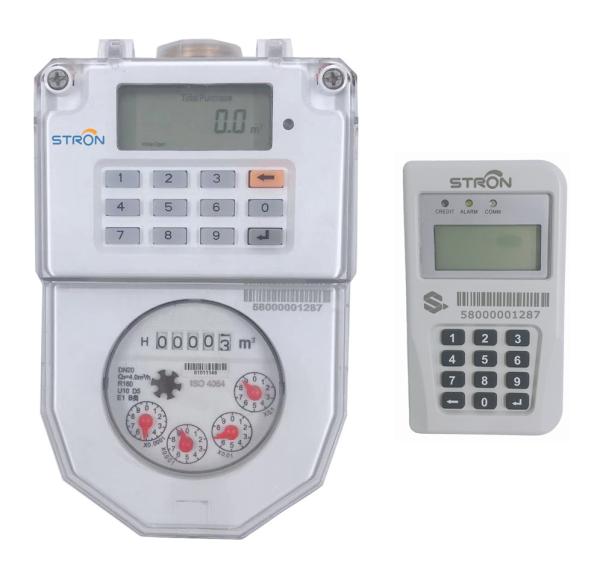

STS Certificated Prepaid IP68 Waterproof R160 Smart Multi-Jet Water Meter With CIU
This split keypad water meter is STS (Standard Transfer Specification) compliant, electronic valve controlled water meter. A handy remote keypad, as Customer Interface Unit (CIU), is offered to enter recharge tokens and information short codes.
It has IP68 waterproof. Brass body register with high level seal. It is suitable use in serious environment. Triple seal design, circuit board encapsulated with epoxy resin, the entire circuit board wrapped up and isolated from the air. A special sealing ring is used between the upper and lower case, a desiccant is placed inside the counter prevent water vapor from entering.
Application:
Measuring the volume of cold water through water pipe.
Main Features
①Dry dial register construction on request
②IP68 waterproof
③Pre-programmable low credit warning
④Recharge by inputting 20 digits TOKEN with keypad CIU
Certificates
✽ ISO 9001 ; ISO 14001
✽ STS Certificated
Meter Dimension
| Size | DN15 1/2” | DN20 3/4” | DN25 1” |
| Length(L) | 165/190 | 190 | 225/260 |
| Width(W) | 99 | 99 | 103 |
| Height(H) | 104 | 106 | 114 |
| Connecting Thread | G3/4B | G1B | G1-1/4B |
Metrological Parameters of different size
| Size | DN15mm 1/2” | DN20mm 3/4” | DN25mm 1” | |
| Overload flow rate Q4 | 3.125 | 5 | 7.87 | |
| Permanent l flow rate Q3 | 2.5 | 4 | 6.3 | |
| Transitional flow rate Q2 | 0.025 | 0.040 | 0.063 | |
| Minimum flow rate Q1 | 0.0156 | 0.025 | 0.0393 | |
| Ratio ”R” Q3/Q1 | 160 | 160 | 160 | |
Features
✽ Maximum working pressure: 16 Bar
✽ Maximum pressure loss: 0.6 Bar
✽ Maximum reading: 99999
✽ Working temperature: <50℃
✽ Error: Q1≤Q≤Q2 5%;
Q2≤Q＜Q4 2%
| Function | Details |
| Prepayment | STS Standard, recharge by input 20digits TOKEN. |
| Low credit alarm | Alarm value can be set by inputting corresponding TOKEN. |
| Prepaid and post-paid switch | Meter can be switch to prepaid mode or post-paid mode. |
| Anti-tamper | Meter will automatically close the valve after detection of magnetic field and open cover event. |
| Overdraft Collection | Non- Revenue water (Overdraft) can be collected day by day or month by month. |
| Communication | The meter is available with AMI system through LORA RF. |
| Information Inquiry | Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code. |

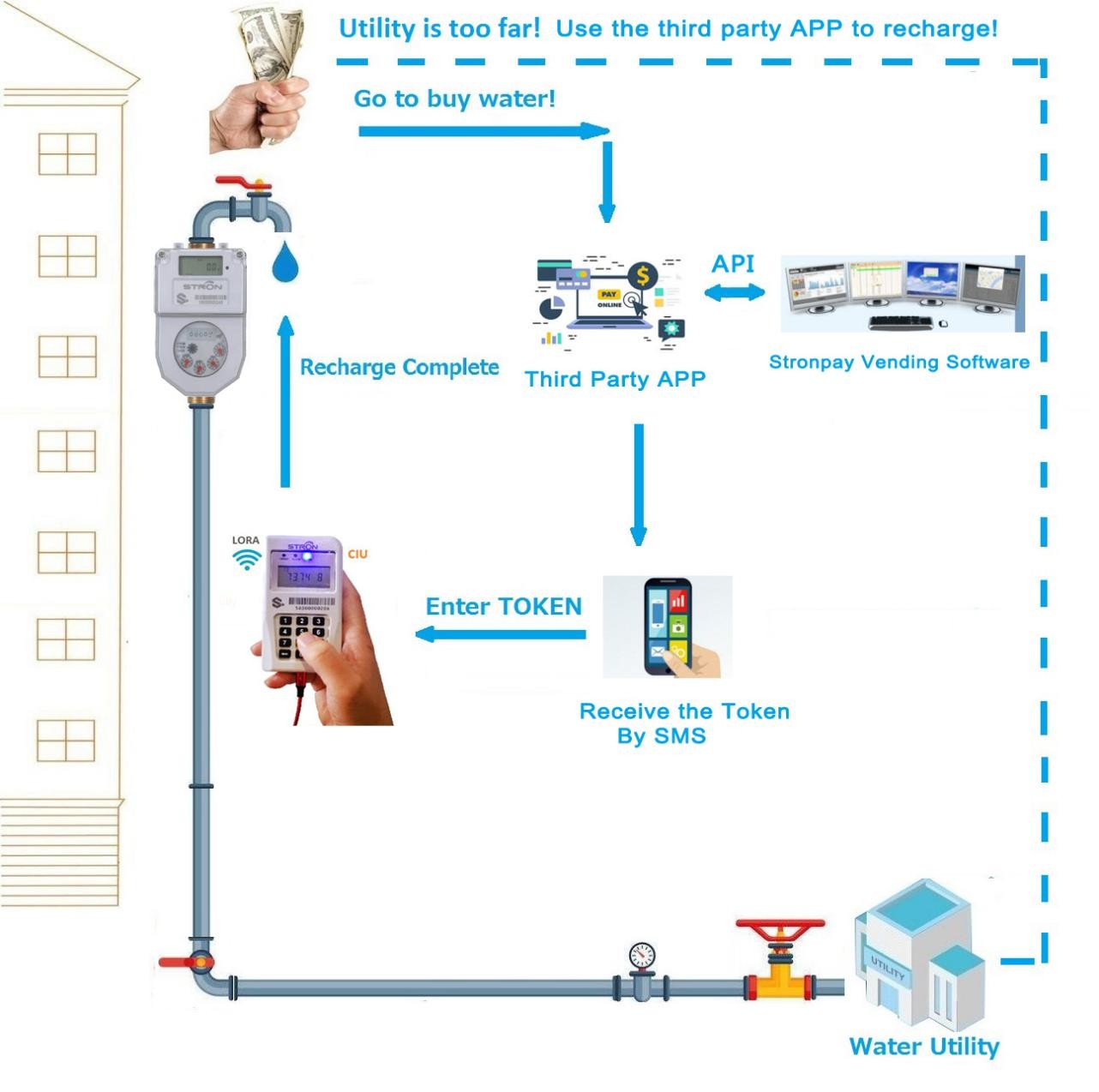

Vending Process
➯ By Stronpay vending Software or handheld mobile vending unit in local sales point
➪ By the third party platform or local mobile payment with API and recharge with mobile phone
The advantages to recharge with mobile payment:
✽ Users can top up water by mobile money without leaving the house.
✽ Users could check information by their telephone.
✽ It helps utilities for Revenue protection and consumer management.
➪ Recharge remotely via DCU and LORA-RF module in AMI system
|
