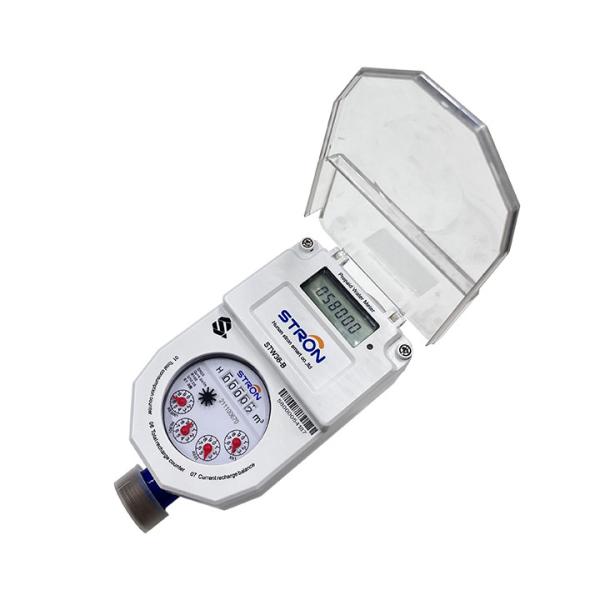

STS Smart Prepayment Multi-jet Water Meter CIU RF-LoRa Support IP68

Product introduction

1.The STW36-B is a multi-jet dry dial cold prepaid water meter with a function of measuring flows of cold potable water. It is a high reliable measurement instrument used in both residential and commercial area, according with OIMLR49/ISO4064 standards.
2. The STW36-B uses the ISM approved by the ITU Radio communication Sector. It could be remotely read out by the handheld unit or the concentrator.
3. The STW36-B has an internal valve controlled by radio frequency signal and is managed by the AMR monitoring system.(Optional)
4. Accuracy class of STW36-B exceeds Class B(R100) and Class C(R160), brass body material.
5. The STW36-B is prepaid water meter with automatic non-return valve.

Technical parameter

Certificates

ISO 9001/ISO 14001/ISO 4064/STS

Features

✽ Maximum working pressure: 16 Bar

✽ Maximum pressure loss: 0.6 Bar

✽ Maximum reading: 99999

✽ Working temperature: <50℃

✽ Error: Q1≤Q≤Q2 5%;

Q2≤Q＜Q4 2%

Meter dimension

Function

1.Remote reading and valve control by CIU
2. Ultra-low power
3. Anti-magnetic Interference
4. Low credit alarm
5. Anti-tamper magnetic field protection
6. History data recording
7. Low Battery detection

Application

Residential and commercial

Solutions to recharge prepaid water meter

1.By Stronpay vending Software

If the credits remain 0,go to sales of point to buy water,via Stronpay vending Software,user will get 20 digits TOKEN receipt and recharge successfully

Operation of vending software

①. Login vending system

②. Meter number registration

③. Customer information registration

④. Price Setting

⑤. Open Account

⑥. Vending/Topping up meters

⑦. Get the Token

⑧. Input Token to meter with keypad

⑨. Recharging successfully

2.By the third party platform or local mobile payment with API

API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.

If the utility is too far,we can use the third party APP to recharge.By API to connect the vending system,users will receive the TOKEN by SMS and then input it to recharge.

Founded in 2007, Hunan Stron Smart Co., Ltd is the leading supplier of smart meters in China. There are 500 employees in our company including 100 technical engineers, and 100 people with professional title. We are devoting ourselves to be the intelligent product service provider.

In China, we have more than 10 million meters running in State Grid of China, which is the biggest utility in the world. All these meters are performing very well. Our production capacity is 8million smart meters per year. And a workshop only working for overseas’ order to guarantee the delivery time and quality control.

Stron owns a strong technical team comprised of industry professional engineers and eminent experts and has applied for over 100 patents and intellectual property rights, and a number of its products and technologies have won the national, provincial and municipal awards.
