Off-Grid 153.6Wh Battery Capacity Indoor PayGo Solar Home System With Solar Management System
Main Features
☀This product meet the Lighting Global Quality Standard, it has good quality and it's safe to use at home.
☀It is STS(Standard Transfer Specification) Compliant, can be recharged with our Stronpay vending software by inputting 20 digits Token.
☀The LiFePO4 Batterries have long life time more than 5 years and are able to be full recharged within 4 hours;
☀ The design of controller is easy to install, top-up and run.
☀ It has high quality with 2 years warranty.
| Components | |
| Solar Panel | 50W 18V Poly crystalline solar panel with 5m cable |
| Solar Controller | Electronic controller |
| USB phone charger | 4-in-1 Phone Charging Cable |
| Operation Temperature | 0℃-60℃ |
| Warranty | 2 years |
| Battery & Storage | |
| Battery Capacity | 153.6Wh Rechargeable LiFePO4 battery |
| Battery protection | Active over charge and over discharge protection |
| Charging time | 4 hrs |
| Lighting | |
| Components | 3× LED lamps with 5m cables |
| Light output | 3W; 300 Lumen |
| Lifetime | 15,000 hours |
| Light distribution | Wide |
| Colour temperature | 4000°K (Cold) |
| Color rending index | 80-100 |
| Running time | 51.2hrs for one light; 17hrs for three lights |
| Radio | |
| Functions | MP3 players;Headphone jack;FM/AM radio;USB port;TF card slot |
| Battery | 3.7V 2000mAH Li-ion Battery with Charging hole |
| Output | 3W |
| Charging time | 4-6hrs , under full sunshine |
| Running time | 5-7hrs after each full charge |
| Torch | |
| Solar Panel | 0.3W/5V Poly crystalline |
| Battery | 3.2V/400mAh LIFePO4 Battery |
| Light source | 0.5W bright LED,50Lumen , 50,000hours life |
| Charging time | 5-7hrs , under full sunshine |
| Running time | 4-8hrs after each full charge |
| DC Fan | |
| Output | 10W, 12V height adjustable DC Fan with 2.5m cable |
| Working Mode | High speed mode :1200 RPM /<10W;Medium speed mode :1000 RPM /8W; Low speed mode :700 RPM /4W |
| Running time | 15hrs with full battery |
| 19” DC TV | |
| Output | 15W; Screen resolution: 1440*900 |
| Working Mode | LED2K HD DIGITAL TV; Supports both satellite dish and antenna; Video sources :HDMI, USB, VGA, AV,Audio |
| Running time | 10hrs with full battery |
Solar Controller
| System indicator lights | Indicators for Charging, Credit and Battery with Red/Green signal On/off indicator for the controller |
| Top-up Keypad | 0-9 keypad, delete button and Enter button |
| Outputs | 4×LED light outputs, 2×USB output |
| Inputs | 1×PV module input |
| 1×PV module input | Overvoltage, reverse voltage and short circuit protection |

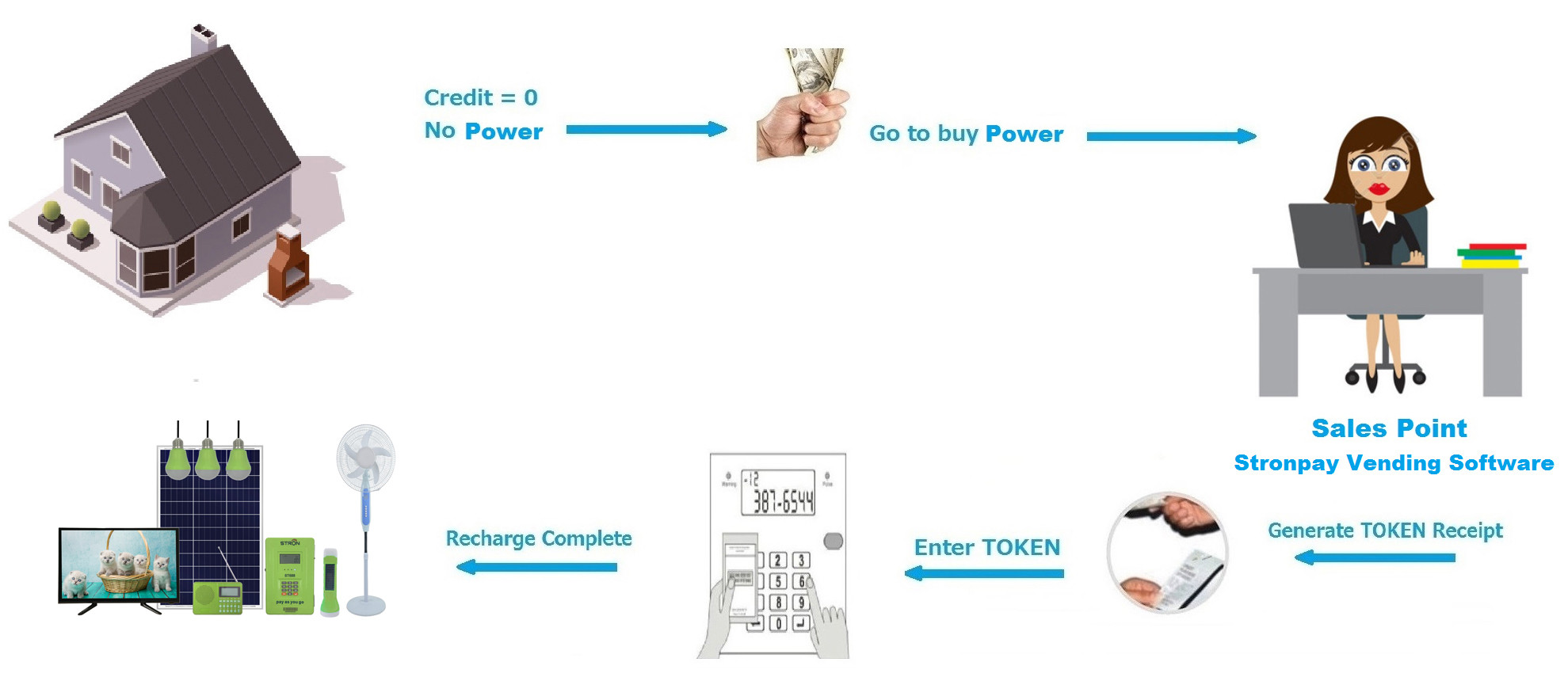

Vending Process
1. Recharge with Stronpay vending software at the sales point
Vending operation:
① Login the web-based vending website by inputting the user name, company name and password.
② Register the solar number and customer information at the library center.
③ Set the price fors for different customers
④ Open an account to combine the meter,customer and price information
⑤ Get the Token at the Top up center.
⑥ Input the Token with keypad.
⑦ Recharging successfully.
2. Top up with mobile phone via API
Stronpay vending software can easily integrated with local mobile
payment via API, which is the agreement connecting the third party APP and our
Stronpay vending software. People can recharge the solar with their mobile phone, the vending
software will send a Token to the third party APP via API, then
users get the recharge Token via GSM.
|
|
