STS Standard keypad Prepaid GPRS module Single Phase Smart Energy Meter

STE18-G is STS Standard compliant, keypad type, automatically connection/disconnection prepaid GPRS single phase electricity meter. The meter is allowing a basic current of 5 Amp while retaining a maximum current of 80 Amp and extended AMR/AMI functional features. It has a GPRS module inside, which can communicate with AMI system directly. Utilities can read, control and recharge the meter remotely and no distance limit. The waterproof of meter is IP54 rating, allowing it to operate in harsh environments.

Main Features

①Ingress protection IP54 waterproof

②Up to 8 years battery life

③Remote connection/disconnection

④STS Standard

⑤Real-time clock

⑥Utilities can set TOU price into meter on request

⑦Anti-Tamper Magnetic field protection

⑧GPRS module in a slot.

⑨Pay by mobile payment including M-PESA, Alipay, MTN, Airtel, etc.


Electrical Parameters

Electric Magnetic Compatibility

Meter Dimension

Basic Functionality:

1. By Stronpay vending Software

➯ Via local sales point or handheld mobile vending unit

Vending Process

☀ Login the web-based vending website by inputting the user name, company name and password.

☀ Register the meter number and customer information at the library center.

☀ Set the price for different customers

☀ Open an account to combine the meter,customer and price information

☀ Get the Token at the Top up center.

☀ Input the Token with keypad.

☀ Recharging completely.

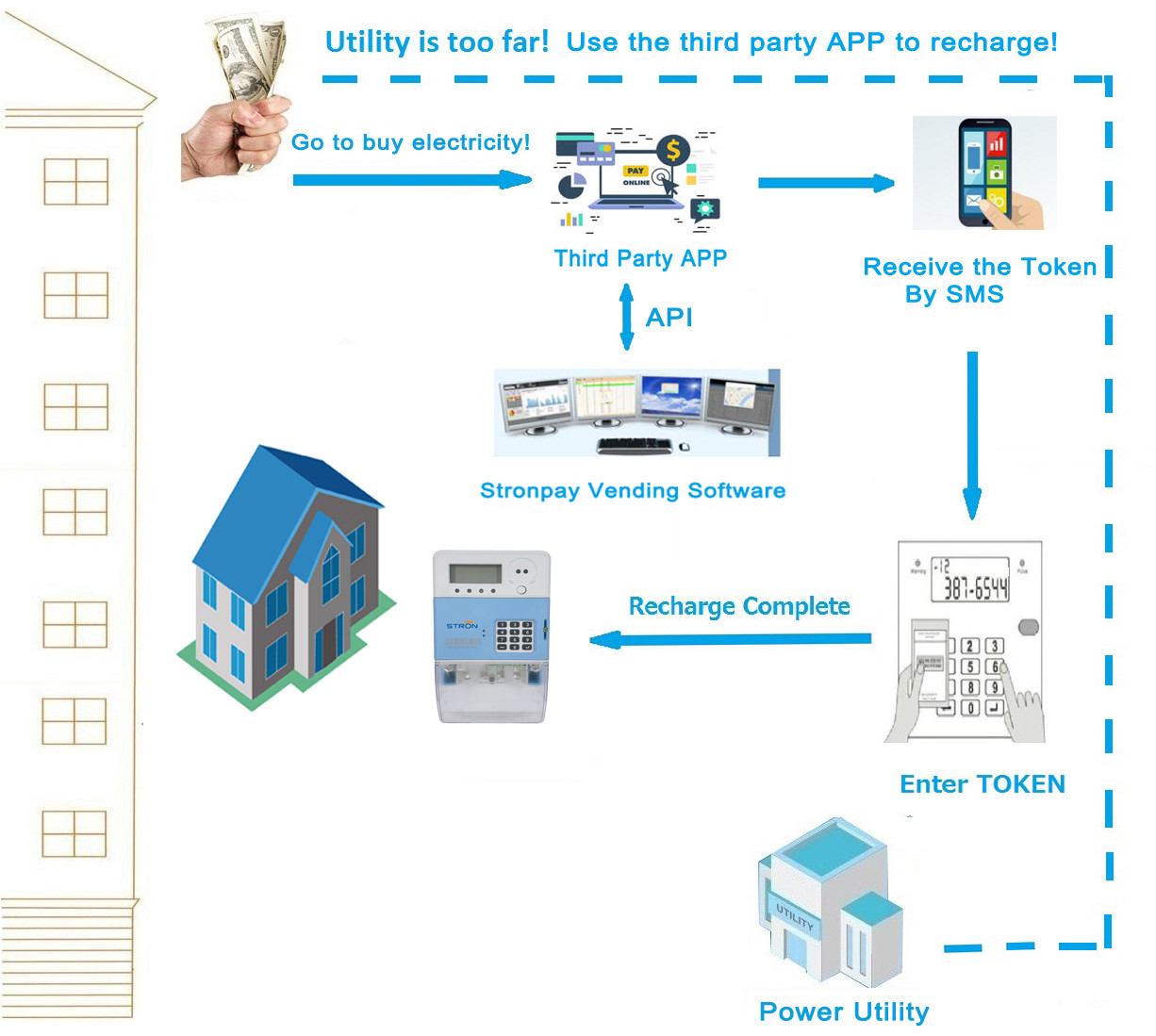

2. By the third party platform or local mobile payment with API

➪ Via mobile phone

API: Application Program Interface, which is the agreement connecting the third party APP and our

Stronpay vending software.

The advantages to recharge with mobile payment:

✽ Users can top up electricity by mobile money without leaving the house.

✽ Users could check information by their telephone.

✽ It helps utilities for Revenue protection and consumer

Founded in 2007, Hunan Stron Smart Co., Ltd is the leading supplier of smart meters in China. There are 500 employees in our company including 100 technical engineers, and 100 people with professional title. We are devoting ourselves to be the intelligent product service provider.

In China, we have more than 10 million meters running in State Grid of China, which is the biggest utility in the world. All these meters are performing very well. Our production capacity is 8million smart meters per year. And a workshop only working for overseas’ order to guarantee the delivery time and quality control.

Stron owns a strong technical team comprised of industry professional engineers and eminent experts and has applied for over 100 patents and intellectual property rights, and a number of its products and technologies have won the national, provincial and municipal awards.
