    400imp/KWh Three Phase Electricity Meter , 100A Digital Kwh Meter 3 Phase

    Ask Lasest Price
    Brand Name : Stron
    Model Number : STE38-A
    Certification : STS
    Price : Can be negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000pcs per Month
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    400imp/KWh Three Phase Electricity Meter , 100A Digital Kwh Meter 3 Phase

    STS Standard Smart Keypad Prepaid Three Phase Electricity Meter with AMI System and independent vending platform

    STE18-A is an STS Standard compliant, keypad type, automatically connection or disconnection three phase prepaid electricity meter.

    Three-phase meters have many advantages over single-phase meters:
    1. In terms of power generation, the three-phase alternator has larger capacity than the single-phase alternator of the same size;
    2. In terms of transmission, if the same voltage will be the same size of power transmission to the same distance, the three-phase transmission line than the single-phase transmission line saves material;
    3. In terms of electrical equipment, three-phase AC motor is simpler in structure, smaller in volume and better in operation than single-phase motor

    Three solutions to recharge prepaid electricity meter
    1.By Stronpay vending Software
    ➯ Via local sales point or handheld mobile vending unit

    Operation of vending software
    (1). Login vending system
    (2). Meter number registration
    (3). Customer information registration
    (4). Price Setting
    (5). Open Account
    (6). Vending/Topping up meters
    (7). Get the Token
    (8). Input Token to meter with keypad
    (9). Recharging successfully

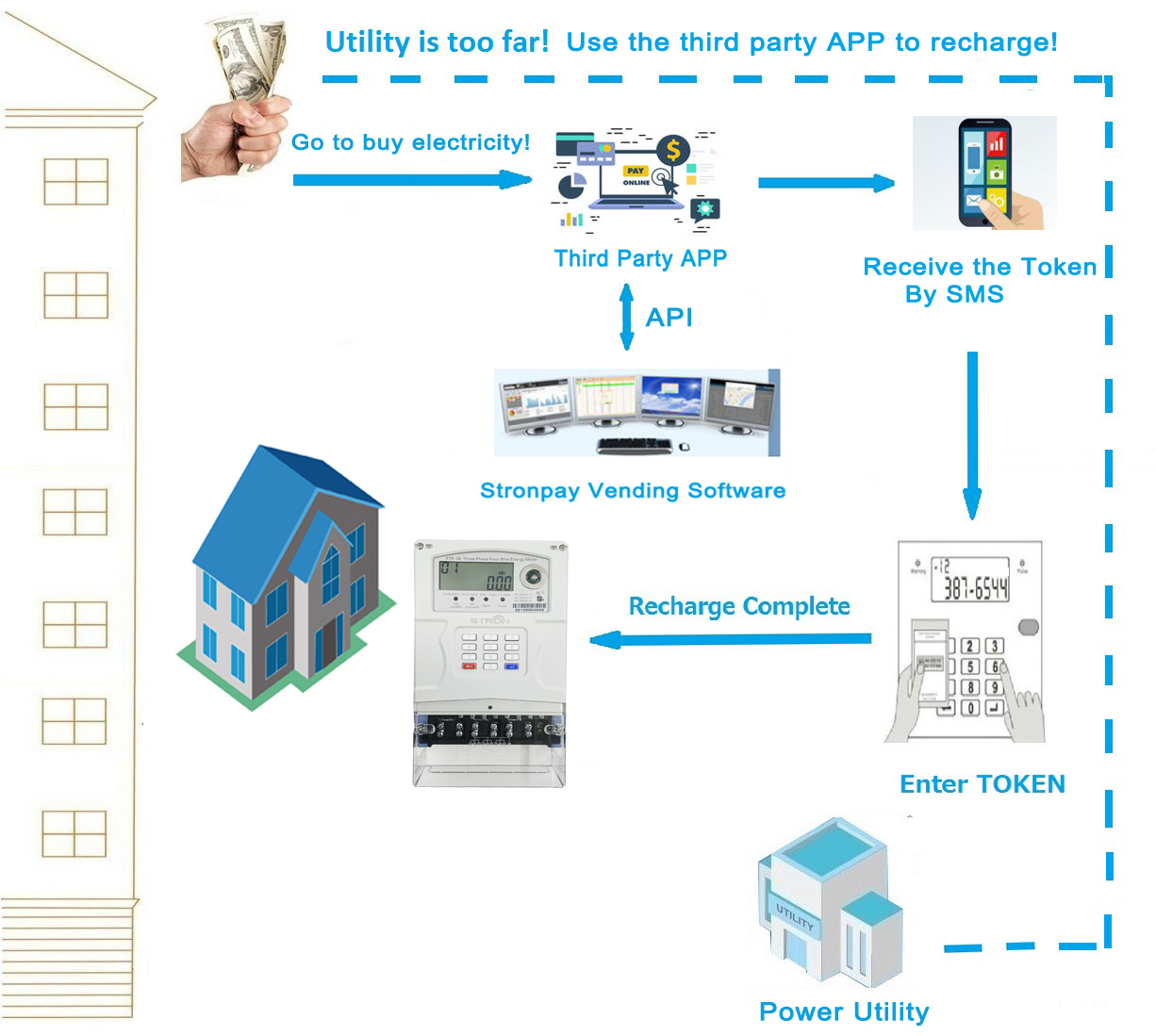

    2.By the third party platform or local mobile payment with API
    ➪ Via mobile phone
    API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.


    The advantages to recharge with mobile payment:
    ✽ Users can top up electricity by mobile money without leaving the house.
    ✽ Users could check information by their telephone.
    ✽ It helps utilities for Revenue protection and consumer management.

    3.By the AMI System
    ➪ Recharge remotely via DCU and LORA-RF or PLC module

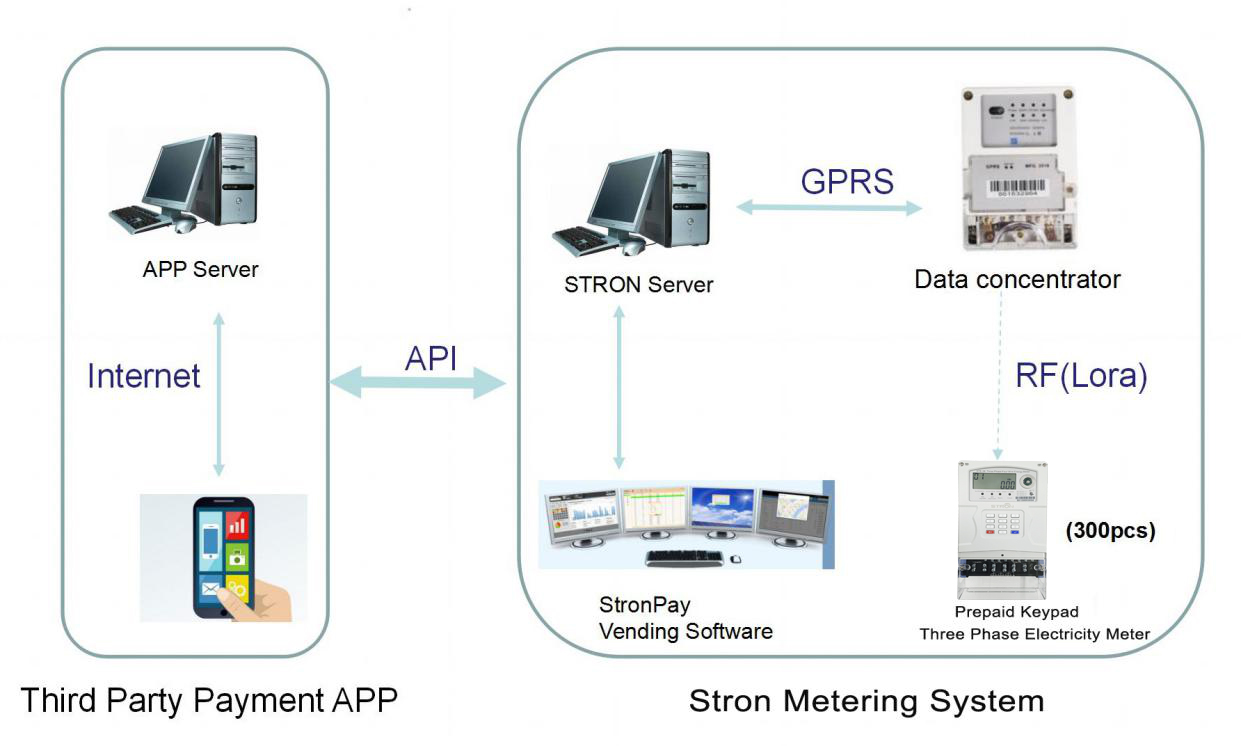

    How to recharge by AMI System? As shown in the figure below:

    1. The electricity meter sends information to the Data Concentrator via LORA-RF or PLC;
    2. The Data Concentrator contains Lora-RF/PLC and GPRS modules, which will transmit the information to the AMI through GPRS after receiving the information from the water meter.
    3. The AMI receives the information, performs remote recharge, and will generate the recharge TOKEN.It is then sent to the Data Concentrator via GPRS;
    4. Data Concentrator receives the information and sends it to the electricity meter via LORA-RF or PLC.

    Basic Functionality

    FunctionDetails
    PrepaymentSTS Standard, recharge by input 20digits TOKEN
    Low credit alarmAlarm value can be set by inputting corresponding TOKEN
    Prepaid and post-paid switchMeter can be switch to prepaid mode or post-paid mode
    Load control functionMeter can be programmed for load control threshold, If the current power is more than threshold. The meter will cut off user load.
    Event recordingMeter can record the tamper event, open cover event, purchase event and TOKENS.
    Self-testingMeter has a self-test function, it can test LCD and relay etc. And report the results directly
    Anti-tamperMeter will automatically close the valve after detection of magnetic field and open cover event
    TOU TariffTOU Tariff can be set by inputting corresponding TOKEN
    Overdraft CollectionElectricity Overdraft can be collected day by day or month by month
    CommunicationThe meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
    Information InquiryConsumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code
    Liquid Crystal Display

    Electrical Parameters

    Nominal Voltage3×230V
    Working Voltage Range70%~120%Un
    Nominal Frequency50-60Hz
    Basic Current (Ib)10A
    Maximum Current (Imax)100A
    Starting Current (Ist)30mA
    Active Energy Constant400imp/kWh
    Active Energy AccuracyClass 1.0
    Reactive Energy AccuracyClass 2.0
    Power Consumption in Voltage Circuit<2W <8VA
    Power Consumption in Current Circuit<1VA
    Operation Temperature Range-25℃-70℃
    Storage Temperature Range-40℃-85℃


    Electric Magnetic Compatibility

    AC Insulation Strength4kV at 50Hz during 1min
    Impulse voltage 1.2/50 us mains connections8kV

    Electrostatic Discharges

    Contact discharge8kV
    Air discharge16kV
    Electromagnetic RF Field27MHz-500MHz10V/m
    100KHz-1GHz30V/m
    Fast transient burst test4kV
    ProtectionClass II


    Meter Dimensions
