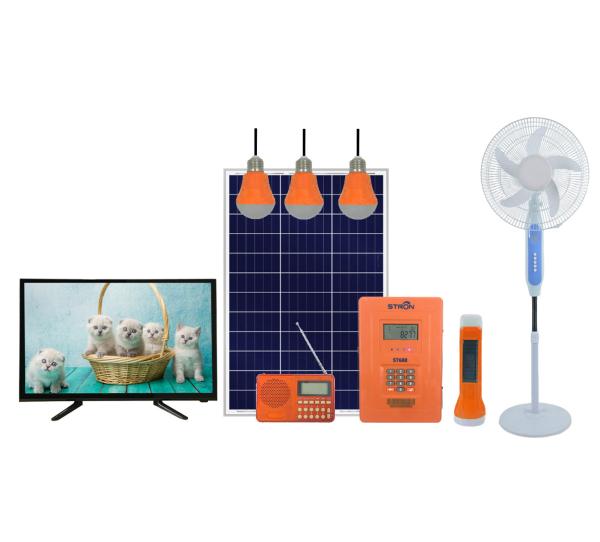

PayGo Solar Home System DC Output Appliance with Rechargeble Radio/Torch/Bulbs/DC TV/DC Fan/Mobile Charger
This Solar Home System is a reliable and environmental solar solution for off-grid areas, which enables people replace polluting and dangerous kerosene resource with clean and green solar energy. It can power LCD TV, DC Fan, Lights, Radio, Torch and your cellphone after few hours charging. This solar kits meet the lighting global quality standard, easy to install,top up and run. The high quality LiFePO4 batteries are able to be full charged eithin 4 hours under the sufficient sunlight.
The Pay As You Go solution can make clean energy becomes more affordable, people can make payments on a daily, weekly or monthly basis. The solar controller is able to be top up with recharge Tokens generated by Stronpay vending software, which can integrated with local mobile payment via API, people can easily pay with their mobile phone and get the recharge Token via GSM.
| Components | Parameters | ST1388-01 | ST1388-02 | ST1388-03 | ST1388-04 |
Controller | Indicator lights | For Charging, Credit and Battery with Red/Green signal; On/off indicator | |||
| Keypad | 0-9 keypads , delete button and Enter button | ||||
| Inputs | 1×PV module input with Overvoltage, reverse voltage and short circuit protection. | ||||
| Outputs | 4×LED light outputs, 4×TV/Fan output, 4×USB output | ||||
Battery | Capacity | 153.6Wh | 153.6Wh | 230.4Wh | 307.2Wh |
| Charging time | 4hrs | 3.5hrs | 3.5hrs | 5hrs | |
| Protection | Active over charge and over discharge protection | ||||
| Solar panel | Capacity | 50W | 60W | 80W | 80W |
| Mobile charger | Functions | 4-in-1 USB connector for mobile phone charging | |||
Lights | Output | 3*3W LED lamps with 5m cable | |||
| Lumen | 300 | ||||
| Lifetime | 15,000hrs | ||||
| Running time | one light: 51hrs | one light: 51hrs | one light: 77hrs | one light: 102hrs | |
| Three lights: 17hrs | Three lights: 17hrs | Three lights: 26hrs | Three lights: 34hrs | ||
Radio | Output | 3W | |||
| Battery capacity | 3.7V 2000mAH Li-ion Battery with Charging hole | ||||
| Functions | FM/AM radio; MP3 players; Head phone jack; USB port; TF card slot | ||||
| Charging time | 4-6hrs , under full sunshine | ||||
| Running time | 5-7hrs after each full charge | ||||
Torch | Solar panel | 0.3W/5V Poly crystalline | |||
| Battery capacity | 3.2V/400mAh LIFePO4 Battery | ||||
| Light source | 0.5W bright LED,50Lumen , 50,000hours life | ||||
| Charging time | 5-7hrs , under full sunshine | ||||
| Running time | 4-8hrs after each full charge | ||||
DC fan(optional) | Size | 16 inch | |||
| Output | 10W, 12V height adjustable DC Fan with 2.5m cable | ||||
| Working mode | High speed mode :1200 RPM /<10W;Medium speed mode :1000 RPM /8W; Low speed mode :700 RPM /4W | ||||
| Running time | 15hrs | 15hrs | 23hrs | 30hrs | |
DC TV(optional) | Size | 19 inch | 24 inch | 27 inch | 32 inch |
| Output | 14W | 16W | 18W | 22W | |
| Working mode | LED2K HD DIGITAL TV; Supports both satellite dish and antenna; Video sources :HDMI, USB, VGA, AV,Audio | ||||
| Running time | 11hrs | 9.5hrs | 12.5hrs | 14hrs | |
Solar Controller
As a low-cost and long-term benefits solar power supply product, the solar controller is the core of the PAYG solar lighting system, it has the keypad including 0-9 keypad, delete and enter buttons, indicators for charging, credit, switch and battery with Red/Green signal, PV module input and 4 LED output, 4 TV/Fan output and 2 USB output. People can use multiple appliances at the same time after only few hours charging, such as DC Fan, Lights, Radio and Torch.
| Operation Temperature | 0℃-60℃ |
| Housing Material | ABS Plastic |
| Output Ports | 4 ports for Bulbs,4 ports for TV and Fan(12V/2A) 4 USB ports for charging(5V/2A) |
| Warranty | 2 years |

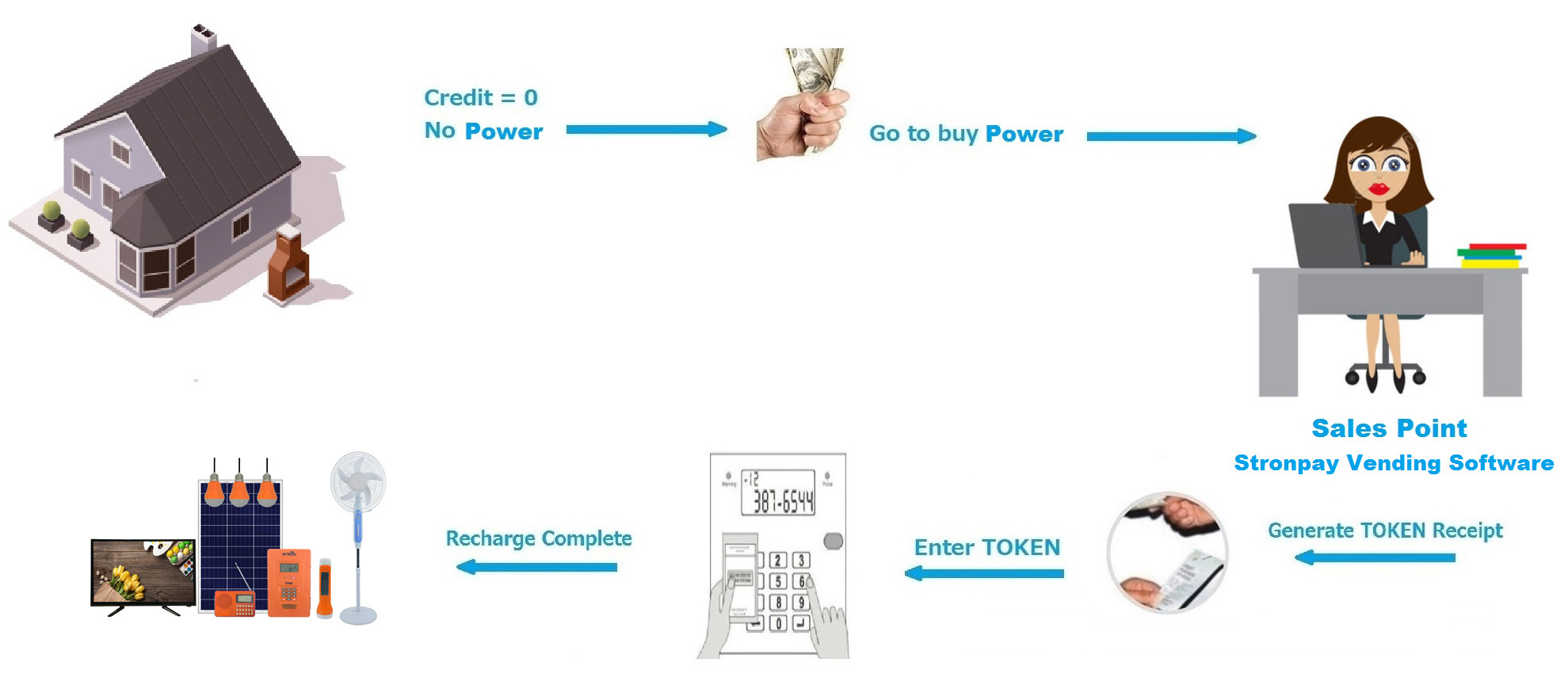

Two ways to recharge the solar lighting system:
1. Recharge with Stronpay vending software at the sales point
Vending Process
☀ Login the web-based vending website by inputting the user name, company name and password.
☀ Register the solar number and customer information at the library center.
☀ Set the price fors for different customers
☀ Open an account to combine the meter,customer and price information
☀ Get the Token at the Top up center.
☀ Input the Token with keypad.
☀ Recharging completely.
2. Top up with mobile phone via API
Business mode
1. Service Mode
Customers no need to pay the deposit, but pay the PAYG fee daily or monthly as long as he want to use the solar home system.
2. Rent to Own Mode
Customers rent the solar home system with a deposit and pay PAYG fee daily or monthly . Then they will own the product after a period of time(one year or two year). This Mode is more common.
|
|
