| Brand Name : | Stron |
| Model Number : | STG16-A |
| Certification : | STS |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, Western Union |
| Supply Ability : | 5000 set per month |
| Delivery Time : | 14 work days |

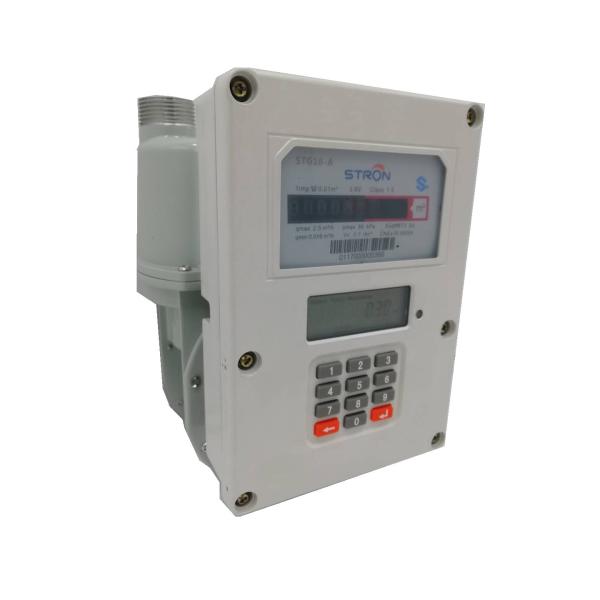

The STG16-A is an STS Standard compliant, keypad type, automatically valve controlled prepaid gas meter. It can be top up with Stronpay vending software directly and communicate with AMI system via LORA-RF or NB-IoT module.
Application:
Measuring the volume of gas through gas pipes.
Compliance with Standard
✽ ISO 9001 ; ISO 14001
✽ STS Certificated
Metrological Parameters of different size
| Size | G1.6 | G2.5 | G4 |
| Nominal Flow Rate | 1.6 m3/h | 2.5 m3/h | 4 m3/h |
| Maximum Flow Rate | 2.5 m3/h | 4 m3/h | 6 m3/h |
| Minimum Flow Rate | 0.016 m3/h | 0.025 m3/h | 0.04 m3/h |
| Cyclic Volume | 0.7dm3 | 1.2 dm3 | 2 dm3 |
| Maximum working pressure | 0.7 Bar | 0.7 Bar | 0.7 Bar |
| Pressure loss | <200 Pa | <200 Pa | <200 Pa |
| Maximum reading | 99999 | 99999 | 99999 |
| Working temperature | -20-50℃ | -20-50℃ | -20-50℃ |
| Storage Temperature | -30-60℃ | -30-60℃ | -30-60℃ |
Error: Qmin≦Q≦0.1Qmax 0.1Qmax≦Q≦Qmax | ±3 | ±3 | ±3 |
| ±1.5 | ±1.5 | ±1.5 |
Functions
The integrated keypad of gas meter is offered to enter recharge TOKEN and check information by short codes.
Stronpay vending software could be integrated to local Mobile Money Payment Platform like M-PESA, Alipay, MTN, Airtel, etc.
Basic Functions
✽ Meter Recharge: By inputting 20 digits Token.
✽ Low Credit Alarm: Alarm value can be set by inputting corresponding TOKEN.
✽Non-return valve: Non-return valve inside for preventing back-flow.
Communication:
The meter is available with AMI system through LORA-RF or NB-IoT module on request.
Step Tariff:
Meters can be set Step Tariff by inputting corresponding TOKEN. Utilities can set step price on request.
Anti-Tamper Functions:
Meter will automatically close the valve after detection of magnetic field and open cover event.
Overdraft Collection:
Non- Revenue gas (Overdraft) can be collected day by day or month by month.
Information Inquiry:
Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code.
|
|
